Universal Air Hose Coupling Hose Ends – 1/4 inch to 2 inch Sizes

Hose end is one of Chicago universal air hose couplings, which is available for carbon steel, brass and stainless steel. The carbon steel hose ends are the most popular because of the economical and durable life.

Hose ends is available in 1/4" to 2" with matched 2-lug or 4 lugs. Detailed specifications are as follows:

Specifications of Universal Coupling Hose End
Size Part Number Remark Picture

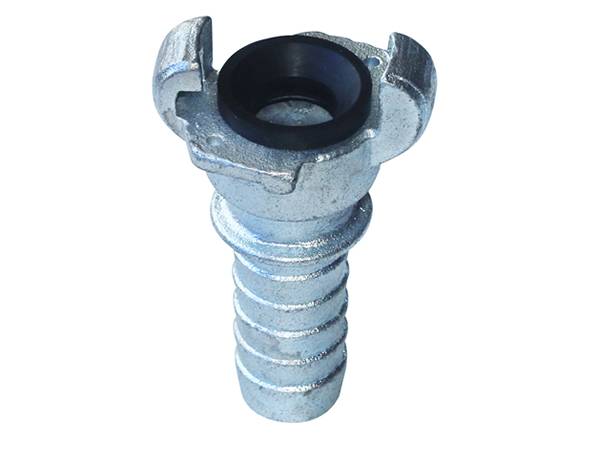

1/4" BDL000 2-lug A piece of 2-lug universal coupling hose end with sealing gasket on white background.
3/8" BDL001 2-lug
1/2" BDL002 2-lug
5/8" BDL003 2-lug
3/4" BDL004 2-lug
1" BDL005 2-lug

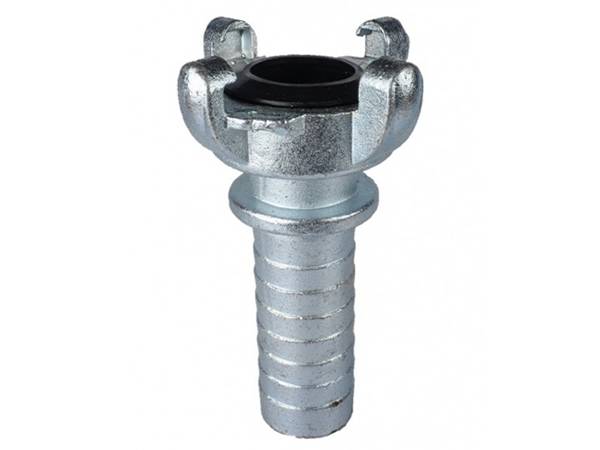

1-1/4" BDL031 4-lug A piece of 4-lug universal coupling hose end with sealing gasket on white background.
1-1/2" BDL032 4-lug
2" BDL033 4-lug
