Female end is one of Chicago universal air hose couplings, which is available for carbon steel, brass and stainless steel. The carbon steel female ends are the most popular because of the economical and durable life.
Female end is available in 1/4" to 2" with matched 2-lug or 4 lugs. Detailed specifications are as follows:
| Size | Part Number | Remark | Picture |
|---|---|---|---|

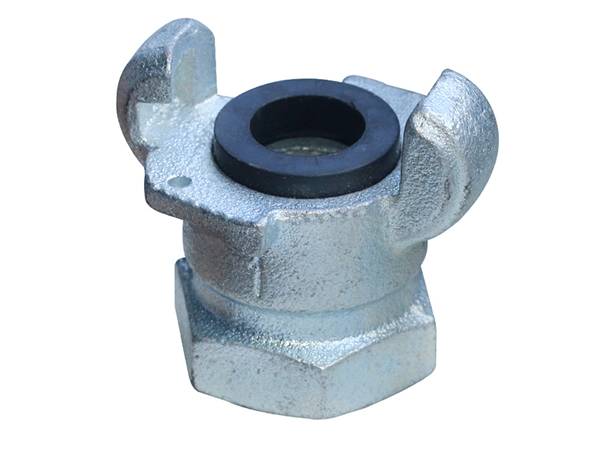

| 1/4" | BDL020 | 2-lug |  |
| 3/8" | BDL021 | 2-lug | |
| 1/2" | BDL022 | 2-lug | |
| 3/4" | BDL023 | 2-lug | |
| 1" | BDL024 | 2-lug | |

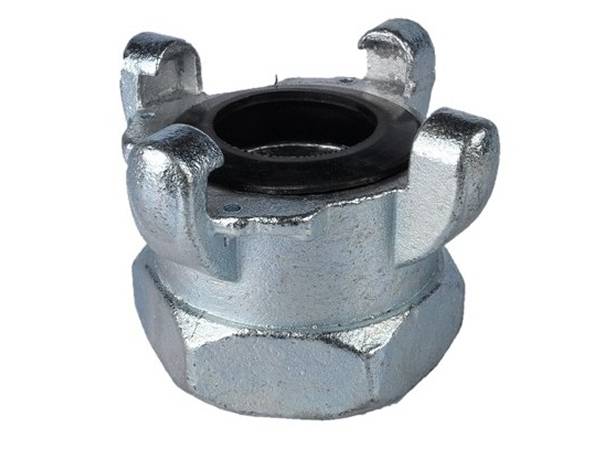

| 1-1/4" | BDL041 | 4-lug |  |
| 1-1/2" | BDL042 | 4-lug | |
| 2" | BDL043 | 4-lug |
